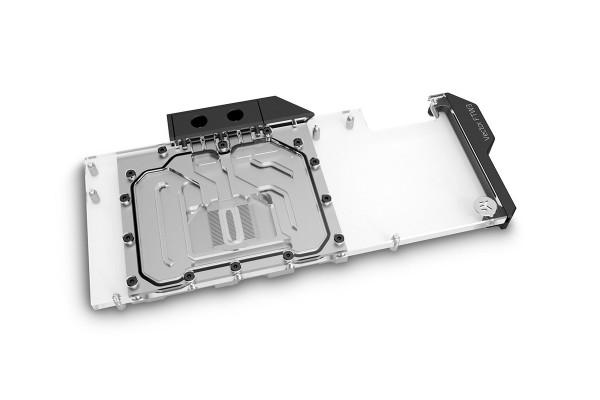

EK-Quantum Vector RTX 3080/3090 D-RGB Graphics Card Water Block - Nickel + Plexi

An EK water block for Nvidia GeForce RTX 3080 and 3090

EK-Quantum Vector RTX 3080/3090 D-RGB water block is compatible with most reference design (not Founders Edition) GeForce RTX 3080 and 3090 graphics cards. It is purpose-designed with a much thicker copper base to clear the tall capacitors on most reference design graphics cards. This gives the water block the advantage of having a wider compatibility list, without sacrificing any coolant flow restriction.

D-RGB lighting on EK-Quantum Vector RTX 3080/3090 D-RGB water block

The aesthetic end-piece is housing the addressable D-RGB LED strip. This water block boasts a total of 12 individually addressable RGB LEDs, and it is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header.

Backplate for the 3080/3090 water block

EK recommends the purchase of a retention backplate, which improves the overall aesthetics of your graphics cards, and also provides additional passive cooling for the GPU core, VRAM on the 3090 cards, and backside of the printed circuit board VRM section.

The Vector water block directly cools the GPU, VRAM, and the VRM (voltage regulation module)

As a cooling liquid is channeled right over these critical areas. The water block is in contact with MOSFETs and chokes to maximize cooling and minimize the chances of coil whine.
