\n UNI-T Portable Thermal Imagers
\nUNI-T Portable Thermal Imagers follow a compact design philosophy. This series can be easily put in the pocket, which is very portable for users. There are 3 models, differentiated by infrared resolution, digital camera, image fusion, WiFi, touch screen, internal storage etc..
\n| \n | \n \n \n ![\"\"](\"https://m.media-amazon.com/images/S/aplus-media-library-service-media/83e20bdd-c507-4066-9b0e-75409b9aa596.__CR0,0,150,300_PT0_SX150_V1___.jpg\") \n \n UTi85A\n | \n \n \n \n \n \n UTi120B\n | \n \n \n \n \n \n UTi165A\n | \n \n \n \n \n \n UTi220B\n | \n \n \n \n \n \n UTi260B\n | \n
|---|---|---|---|---|---|
| \n | \n\n \n\n \n | \n \n\n \n\n \n | \n \n\n \n\n \n | \n \n\n \n\n \n | \n \n \n\n | \n
| Customer Reviews | \n\n\n \n \n\n 42\n \n | \n \n\n \n —\n \n | \n \n\n \n —\n \n | \n \n\n \n —\n \n | \n \n\n \n \n\n 51\n \n | \n
| Price | \n— no data\n | \n— no data\n | \n— no data\n | \n— no data\n | \n£282.00£282.00 | \n
| Temperature range | \n-10~400℃ | \n-10~400℃ | \n-10~400℃ | \n-10~400℃ | \n-15~550℃ | \n
| IR resolution | \n80x60 pixels | \n120x90 pixels | \n160x120 pixels | \n200x150 pixels | \n256x192 pixel | \n
| Field of view (FOV) | \n51°x38° | \n51°x38° | \n56°x 42° | \n35°x26° | \n56°x 42° | \n
| Measurement accuracy | \n±2℃ or ±2% whichever is greater | \n±2℃ or ±2% whichever is greater | \n±2℃ or ±2% whichever is greater | \n±2℃ or ±2% whichever is greater | \n±2℃ or ±2% whichever is greater | \n
| Focus | \nFocus free | \nFocus free | \nFocus free | \nFocus free | \nFocus free | \n
| Display | \n2.8”LCD | \n2.8”LCD | \n2.8”LCD | \n2.8”LCD | \n2.8”LCD | \n
| Product net size | \n236mm x 75.5 mm x 86mm | \n236mm x 75.5 mm x 86mm | \n236mm x 75.5 mm x 86mm | \n236mm x 75.5 mm x 86mm | \n236mm x 75.5 mm x 86mm | \n
Main Feature
\n\n ![\"UTi120B\"](\"https://m.media-amazon.com/images/S/aplus-media-library-service-media/70798185-a05f-4c6f-ae6b-b9f0db0dc526.__CR0,0,800,800_PT0_SX220_V1___.png\")
UTi120B
\n1. 2.8’’ TFT screen 2. Infrared resolution: 80x60 pixels3. Temperature measurement range: -10℃~400℃ 4. Buzzer/flashlight alarm 5. Auto capture of Hi/Low temperature 6. 1/4’’ tripod mounting hole 7. IP65/2m drop proof
\n\n ![\"UTi85A\"](\"https://m.media-amazon.com/images/S/aplus-media-library-service-media/a7a67837-145d-4eac-a79c-2226115a0bcc.__CR0,0,800,800_PT0_SX220_V1___.jpg\")
UTi165a
\n1. 2.8’’ TFT screen 2. Infrared resolution: 120x90 pixels 3. Temperature measurement range: -10℃~400℃ 4. Buzzer/flashlight alarm 5. Auto capture of Hi/Low temperature 6. 1/4’’ tripod mounting hole 7. IP65/2m drop proof
\n\n ![\"UTi165A\"](\"https://m.media-amazon.com/images/S/aplus-media-library-service-media/9e4c4aa8-94a8-4bae-a21e-6c3173ad9842.__CR0,0,800,800_PT0_SX220_V1___.jpg\")
UTi220B
\n1. 2.8’’ TFT screen 2. Infrared resolution: 200x160 3. Temperature measurement range: -10℃~400℃ 4. Buzzer/flashlight alarm 5. Auto capture of Hi/Low temperature 6. 1/4’’ tripod mounting hole 7. IP65/2m drop proof
\n\n ![\"UTi220B\"](\"https://m.media-amazon.com/images/S/aplus-media-library-service-media/e9116a76-f3fb-476d-84d8-b04019584ac1.__CR1,0,799,799_PT0_SX220_V1___.jpg\")
UTi260B
\nThese series products are rugged, and ergonomically designed thermalimager with great performance. It adopts a UFPA detector to ensureexcellent infrared resolution and a rich variety of palette modes.Some models have the functions of visual light, buzzer alarm, andreal-time image transmission, which is convenient for various applications.
\nFeatures
\n● 2.8\" TFT screen ● Infrared resolution: 256 x 192 ● Temperature measurement range: -15℃~550℃ ● Photograph function with SD card storage ● PC analysis software ● Buzzer/flashlight alarm ● Real-time image transmission ● Auto capture of Hi/Low temperature ● Flashlight ● 1/4\" tripod mounting hole ● IP65/2m drop proof
\n- \n
- Durable and user-friendly 8\" TFT display screen (320×240 pixels) IR resolution: 256×192 \n
- Temperature measurement range: -20°C to 550°C / -4℉ to 1022℉ \n
- Auto alarm for high/low temperature Auto tracking for hot spot/cold spot \n
- On screen analyzer: Point 3 Image capture Image modess: Thermal,Visual image,Fusion,PIP \n
- Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC) \n
| Brand | \nUNI-T | \n
| Colour | \nRed/Grey | \n
| Age range (description) | \nAdult | \n
| Included components | \nThermal Chamber | \n
| Outer material | \nMetal | \n
| Specification met | \nCE file | \n
| Display type | \nDigital | \n
| Connectivity technology | \nUsb | \n
| Product care instructions | \nWipe Clean | \n
| Power source | \nBattery Powered | \n

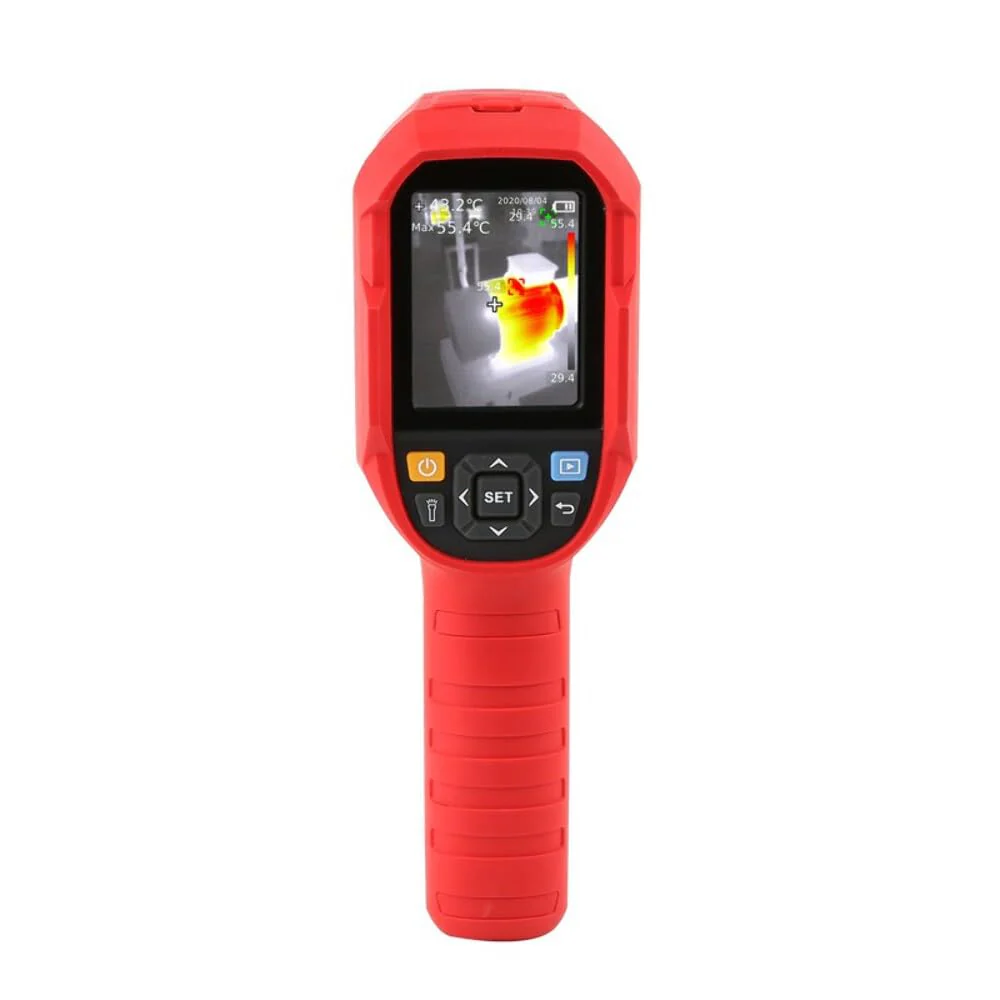

UNI-T UTi260B Thermal Camera Imager 49152Pixels 256x192 IR Resolution Handheld Infrared Camera Thermal Imaging IP65 2 Meter Drop Durability Rechargeable, Red/Grey
UNI-T UTi260B Thermal Camera Imager 49152Pixels 256x192 IR Resolution Handheld Infrared Camera Thermal Imaging IP65 2 Meter Drop Durability Rechargeable, Red/Grey
UNI-T Portable Thermal Imagers
UNI-T Portable Thermal Imagers follow a compact design philosophy. This series can be easily put in the pocket, which is very portable for users. There are 3 models, differentiated by infrared resolution, digital camera, image fusion, WiFi, touch screen, internal storage etc..
UTi85A
|
UTi120B
|
UTi165A
|
UTi220B
|
UTi260B
|
|
|---|---|---|---|---|---|
|
|
|
|
|
||
| Customer Reviews |
42
|
—
|
—
|
—
|
51
|
| Price | — no data | — no data | — no data | — no data | £282.00 |
| Temperature range | -10~400℃ | -10~400℃ | -10~400℃ | -10~400℃ | -15~550℃ |
| IR resolution | 80x60 pixels | 120x90 pixels | 160x120 pixels | 200x150 pixels | 256x192 pixel |
| Field of view (FOV) | 51°x38° | 51°x38° | 56°x 42° | 35°x26° | 56°x 42° |
| Measurement accuracy | ±2℃ or ±2% whichever is greater | ±2℃ or ±2% whichever is greater | ±2℃ or ±2% whichever is greater | ±2℃ or ±2% whichever is greater | ±2℃ or ±2% whichever is greater |
| Focus | Focus free | Focus free | Focus free | Focus free | Focus free |
| Display | 2.8”LCD | 2.8”LCD | 2.8”LCD | 2.8”LCD | 2.8”LCD |
| Product net size | 236mm x 75.5 mm x 86mm | 236mm x 75.5 mm x 86mm | 236mm x 75.5 mm x 86mm | 236mm x 75.5 mm x 86mm | 236mm x 75.5 mm x 86mm |
Main Feature
UTi120B
1. 2.8’’ TFT screen 2. Infrared resolution: 80x60 pixels3. Temperature measurement range: -10℃~400℃ 4. Buzzer/flashlight alarm 5. Auto capture of Hi/Low temperature 6. 1/4’’ tripod mounting hole 7. IP65/2m drop proof
UTi165a
1. 2.8’’ TFT screen 2. Infrared resolution: 120x90 pixels 3. Temperature measurement range: -10℃~400℃ 4. Buzzer/flashlight alarm 5. Auto capture of Hi/Low temperature 6. 1/4’’ tripod mounting hole 7. IP65/2m drop proof
UTi220B
1. 2.8’’ TFT screen 2. Infrared resolution: 200x160 3. Temperature measurement range: -10℃~400℃ 4. Buzzer/flashlight alarm 5. Auto capture of Hi/Low temperature 6. 1/4’’ tripod mounting hole 7. IP65/2m drop proof
UTi260B
These series products are rugged, and ergonomically designed thermalimager with great performance. It adopts a UFPA detector to ensureexcellent infrared resolution and a rich variety of palette modes.Some models have the functions of visual light, buzzer alarm, andreal-time image transmission, which is convenient for various applications.
Features
● 2.8" TFT screen ● Infrared resolution: 256 x 192 ● Temperature measurement range: -15℃~550℃ ● Photograph function with SD card storage ● PC analysis software ● Buzzer/flashlight alarm ● Real-time image transmission ● Auto capture of Hi/Low temperature ● Flashlight ● 1/4" tripod mounting hole ● IP65/2m drop proof
- Durable and user-friendly 8" TFT display screen (320×240 pixels) IR resolution: 256×192
- Temperature measurement range: -20°C to 550°C / -4℉ to 1022℉
- Auto alarm for high/low temperature Auto tracking for hot spot/cold spot
- On screen analyzer: Point 3 Image capture Image modess: Thermal,Visual image,Fusion,PIP
- Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
| Brand | UNI-T |
| Colour | Red/Grey |
| Age range (description) | Adult |
| Included components | Thermal Chamber |
| Outer material | Metal |
| Specification met | CE file |
| Display type | Digital |
| Connectivity technology | Usb |
| Product care instructions | Wipe Clean |
| Power source | Battery Powered |
